For Astra Docs Chat , the subject matter is Astra DB Serverless: using Astra as the vector store was the natural fit, and Langflow’s DataStax bundle already wired up ingest and search components.
Overview: Building Astra Docs Chat · Langflow flows · Batch ingest
Try it: Astra Docs Chat
Collection setup ¶
Production values in the Langflow flow:
| Field | Value |
|---|---|
| Collection name | datastax_astra_docs |
| Keyspace | default_keyspace |
| Same collection | Ingest flow writes; chat flow reads |
First ingest into an empty collection is simplest. Re-runs append unless you configure deletion/upsert fields in the AstraDB component.
Credentials: Astra application token and API endpoint via Langflow global variables, not in exported flow JSON. The public site never sees Astra tokens; only the private Langflow instance uses them.
Pre-flight before batch ingest (batch post
): confirm the collection exists and credentials work with a --limit 3 smoke run.
Langflow DataStax bundle ¶
Two AstraDB component instances in the project:
- Ingest (
AstraDB-ingest): accepts embedded chunks from SplitText + OpenAI Embeddings - Chat (
AstraDB-aqrWjor equivalent): similarity search at query time against the same collection
Langflow’s bundle handles connection plumbing; you tune collection name, top-k, and search mode in the component UI.
Ingest chain:
File → SplitText → OpenAI Embeddings (text-embedding-3-small) → AstraDB
Chat retrieval defaults on the template:
| Setting | v1 value |
|---|---|
| Search method | Vector Search |
| Search type | Similarity |
| Number of results | 4 |
| Score threshold | 0 |

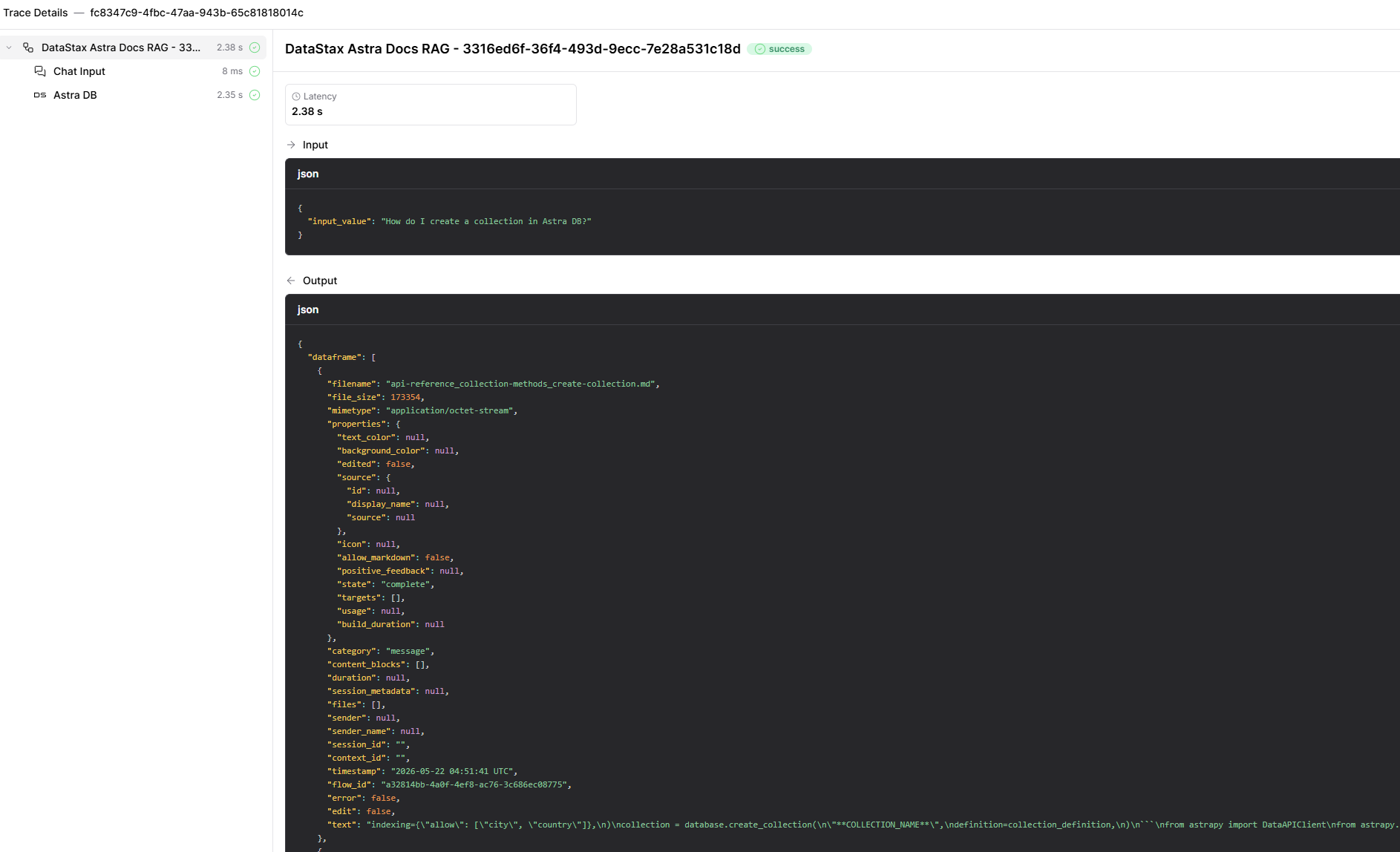

Playground trace: most latency is the Astra DB search step; output JSON shows retrieved chunk text and source filename.
Embeddings at query time must use the same model as ingest. See chunking and embedding post .
For bundle field-level docs, see Langflow’s DataStax bundle documentation in your Langflow install (bundles-datastax in Langflow docs).
Vector search vs hybrid search ¶
v1 uses vector similarity over embedded markdown chunks. That works well for conceptual questions (“What are PCU groups?”, “How does serverless billing work?”).
Astra DB Serverless also supports hybrid search (vector + keyword). That helps when users ask for exact API symbols, CLI flags, HTTP paths, or error strings that embed poorly as semantic vectors.
Possible v2 upgrade:
- Enable hybrid in the chat AstraDB component
- Compare hit quality on symbol-heavy questions (e.g. specific REST path segments, driver class names)
- Re-evaluate docs-only guardrails if keyword matches change score distributions
Hybrid does not remove the need for fresh corpus (re-ingest post ).
Why Astra here (and not X) ¶
| Option | Why / why not for this project |
|---|---|
| Astra DB | On-brand corpus, Langflow bundle, serverless ops, hybrid path available |
| pgvector | Fine technically; extra infra unrelated to doc subject |
| Pinecone / other SaaS | Works; adds another vendor for a DataStax demo |
| Cloudflare Vectorize | Attractive on Cloudflare stack; reimplements ingest/search outside Langflow graph |
The goal was fastest path to a working Langflow RAG demo on DataStax docs: Astra won on integration cost, not because it is the only valid store.
I already operated Astra for other experiments; the Langflow template shipped DataStax components ready to paste tokens into global variables.
Scale and cost notes ¶
271 doc pages × multiple chunks each is tiny by database standards. Serverless storage and query cost for a personal chat is negligible compared to:
- OpenAI embedding API on full ingest (batch timing: 2-4 hours )
- DeepSeek chat tokens on every public question (DeepSeek swap post )
Monitor embedding spend on full re-ingest more than Astra PCU usage for this workload.
Top-k = 4 keeps retrieved context small for prompt size and latency. Raising k without prompt tuning can add noise.
Operational checklist ¶
- Rotate Astra application tokens on the same schedule as other API keys
- After Langflow upgrade, re-test ingest + search in Playground
- Before major doc refresh, note collection size and spot-check retrieval
- If duplicates accumulate from append-only re-ingest, truncate collection and rebuild
Try it ¶
Ask collection or search questions on Astra Docs Chat : answers should reflect ingested Serverless docs terminology (collections, keyspaces, PCU groups, hybrid search).
Compare to searching official docs directly: RAG shines on multi-step “how do I…” questions; exact symbol lookup may still favour docs search or hybrid v2.
Next in the series ¶
- Swapping DeepSeek in for OpenAI chat : generation cost after retrieval
- Self-hosting Langflow : where the AstraDB components run
- Chunking and embedding technical docs : what gets stored in the collection
Series index: Building Astra Docs Chat
Open Astra Docs Chat and ask about vector search vs hybrid search: the ingested docs explain both.
